Power Cable

动力电缆用来向采油电机输送电能。根据采油电机不同的功率要求及不同的油井条件，潜油电缆有不同的规格。QYPDF型潜油电缆适应于在井温不超过90°C的油井条件，QYEQ10型潜油电缆耐温可达120°C.而QYAEQ10型耐温可达180°C.为防止潜油电缆损伤，通常采用镀锌铁皮铠装，对于腐蚀性介质，则采用不锈钢或monel铠装。 动力电缆有扁型和圆型两种。

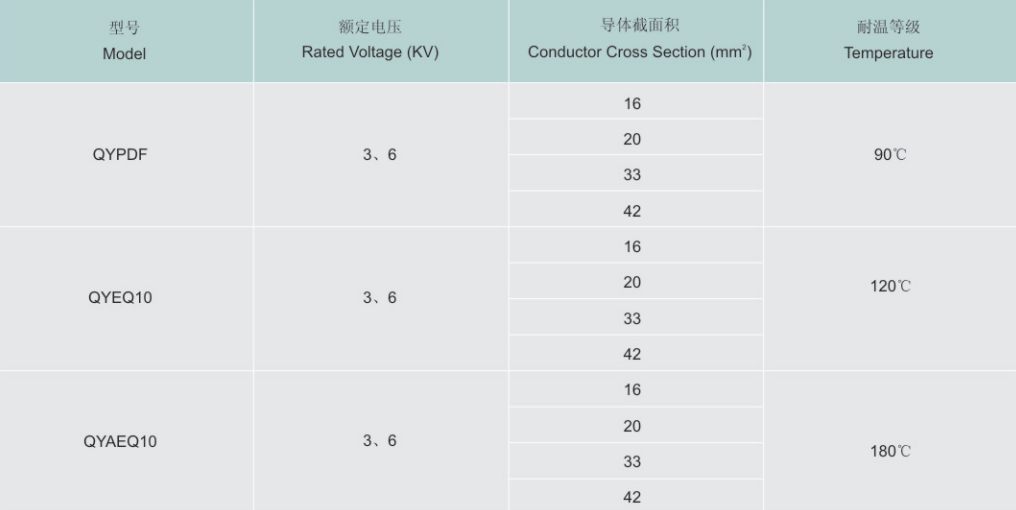

ESP cable is used to transfer power to the submersible motor. According to the different requirements of power and different conditions of oil well, there are different specifications of cable. The QYPDF cable are designed for operating in the wells with environmental temperature under 90°C ,as well as the QYEQ10 cable can be used up to120°C while the

QYAEQ10 type up to 180°C. To prevent it from being damaged, we usually use galvanized steel armor, and stainless steel or monel armor for corrosive medium. There are round power cable and flat power cable.
