The Gas Separator
油气分离器主要由转子、交叉扩散 |
一、可有效处理气液比30%的游离 |
器、分离器轴、诱导轮、增压叶轮、导 | 气，分离效果达90%以上。 |
|
向轮及上下接头组成。 | 二、吸入口采取网状封闭形式，可 |
|
油气分离器的作用是： | 防止井内异物进入分离器，造成泵及分 |
|
一、作为井液进入多级离心泵的吸 | 离器的堵塞及卡阻现象。 |
|
入口。 | 三、高强度的防砂衬套设计，可有 |
|
二、在气液混合体进入多级离心泵 | 效的避免由于油井出砂造成的壳体断 |
|
之前把游离气体分离出来，以减少气体 | 裂、机组落井。 |
|
对潜油电泵工作特性的影响。 | 四、可进行多级串联，提高分离效 |
|
| 果。 |
|

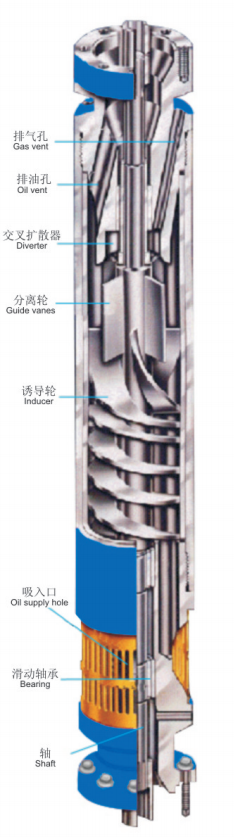

It consists of rotators, cross diffuser, separator shaft, induction wheel, pressure increased impeller, directive wheel,top and lower connection. Function:
It's the suction port for well fluid entering the submersible centrifugal pump. Meanwhile, free gas can be separated prior to flowing into the submersible centrifugal pump, therefore relief gas effect on the pump unit.. Characteristics:
1. It can separate 90% free gas from the mixture while GAL reach to35%. 2.It adopts netted sealing structure at the port for the protection of the pump unit. 3.High strength sand-resistant sleeve can effectively avoid casing fracture and pump lost in well under high sand content conditions.
4.Tandem separators can be provided to improve the gas and oil separation.
