Seal Section

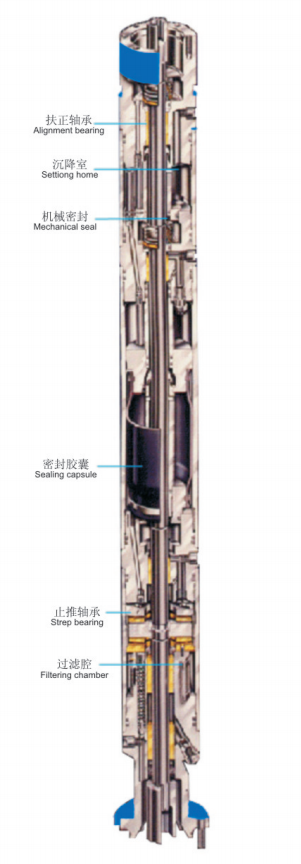

保护器有沉降式、胶囊式及沉降胶囊式复合的三种结构，每种结构形式均含有能提高密封可靠性的多级密封腔。保护器轴通常采用Monel-K500材质，共有六道机械密封。保护器内的止推轴承具有较高的承载能力。根据不同的井况条件，可以提供不同型 号和系列的保护器。

它具有以下功能特点：

•防止井液进入电机；

•提供了电机油因温度和压力变化而膨胀或收缩的容腔和路径；

•平衡内外腔压力；

•通过止推轴承承受泵传递下来的轴推力；

•耐温等级有90°C、120°C、150°C和180°C四种。

Every seal section contains multiple redundant barrier chambers to enhance reliability. Barrier chambers are available in labyrinth and bag types. Shaft of protector usually uses Monel-k500 material. There are six mechanical face seals on it. Thrust bearing used in seal section has high vearing capacity. Bohai Petroleum Equipments Manufacturing Company can offer different types and series seal section to adpapt individual well conditions.

Critical functions:

• Prevents well fluids from entering the motor;

• Provides a reservoir for motor oil expansion and contraction caused by temperature and pressure changes;

• Equalizes the internal pressure of the motor with the pressure in the well annulus;

• Absorbs the pump shaft thrust on the seal thrust bearing.

• The temperature type have 90°C、120°C、150°Candl 80°C.
