该油管锚主要用于智能分层注水井（也可用于常规生产管柱），通常可置于管 柱的底部和顶部，用于固定工艺管柱，防止油管和工具的蠕动，延长封隔器等工具 的使用寿命。

主要特性

在实现管柱锚定的同时，该工具设计有4个侧面的过线缆通道，至少可以侧面过  4 根1/4in 的线缆。电缆在穿越的同时不需要截断续接，满足现场无损线缆穿越的要求，大大降低了现场的施工难度，减少作业风险点。

主要技术特点

双向卡瓦，双向锚定；坐封系统带有保护机构，保证入井过程中的相对安全； 过缆通道同时有利于大排量洗井，对循环洗净无任何附加阻力。

ZY CABLE PASSING HYDRAULIC OIL  PIPE ANCHOR

The tubing anchor is mainly used for intelligent layered water injection wells (also used for conventional production string). It can usually be placed at the bottom and top of the string to fix the process string, prevent the creep of tubing and tools, and prolong the service life of packers and other tools.

FEATURES

While anchoring the pipe string, the tool is designed with 4 side cable channels, and at least 4 1 /  4in cables can pass through the anchor. The cable does not need to be cut off and connected while  crossing, which meets the requirements of nondestructive cable crossing on site, greatly reduces the construction difficulty on site and reduces the operation risks. Main technical features: two-way slip and two-way anchoring; having a protection organization in  the setting system to ensure the relative safety of the well running process;The cable passage is also  conducive to large displacement well flushing without any additional resistance to circulating cleaning.

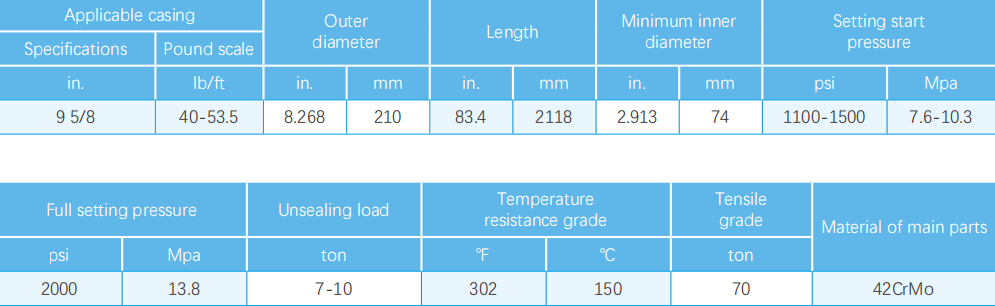

Note: Other specification products are available
