捞砂泵是一种非常可靠和有效的井下清砂工具，单行程可从井下清理出大量沙 子。使用时，其两端连接球阀和储砂筒。密封系统采用优质V型密封组合，最大工作温 度248℉(120℃)，密封组合两端具有缓冲环和耐磨环，  可以长时间地保证捞砂泵在 井下正常工作。六方形芯轴使捞砂泵可以传递扭矩。

主要特性

◎ 随油管串下入，操作方便；

◎ 采用V型密封组合，具有出色的密封性能；

◎ 工作压差：5000 psi，最大工作温度：248℉(120℃)；

密封组合两端具有清砂装置(缓冲环和耐磨环)；

◎ 可以传递扭矩。

BAILING PUMP

INTRODUCTION

Bailing pump is a reliable and effective downhole wash tool. It can wash the large sands in wellbore with single trip. When applying, its two ends are attached to connection ball valve and sand store bucket. Seal system adopts premium V-shape seal assembly. The highest working temperature is 248 ℉ (120℃ ).The seal assembly has cushion ring and wearable ring. It can ensure nature long work time. Six square nipple can transmit torque.

FEATURES

◎ Run in wellbore, easy operation;

◎ Adopt V- shape seal assembly, excellent seal performance;

◎ Differential pressure: 5000 psi, the highest working temperature: 248 ℉ (120℃ );

◎ Has wash device at the two end of seal assembly.

◎ Can transmit torque.

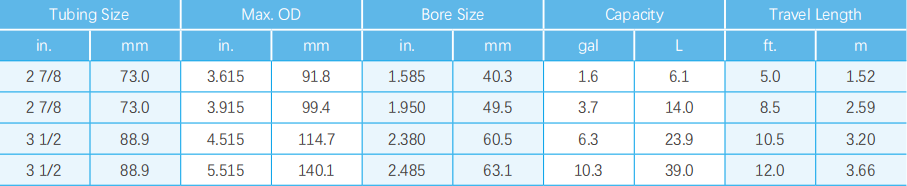

Note: Other specification products are available
