化学药剂注射阀总成包括固定式化学注射阀和与之配套的固定式化 学注射工作筒，是一种控制化学药剂进入油管的井下装置。下井前先将 固定式化学注射阀连接到固定式化学注射工作筒上，再通过一根控制管 线连接化学注射阀和井口装置，地面化学注射泵将化学药剂加压后通过 控制管线、固定式化学注射阀注入生产管线。在实际使用中也可以不连 接控制管线，通过油、套环空直接注射到生产管线。
主要特性
◎ 注入阀破裂盘采用易碎钢化玻璃或金属片；
◎ 注入阀采用标准NPT连接螺纹；
◎ 注入阀具有单流阀设计；
◎ 注入阀材料有不锈钢和INCONEL根据井况要求供客户选择；
◎ 工作筒采用整体式结构坚固耐用；
◎ 工作筒与化学注射阀连接螺纹为1/2 "NPT；
◎ 工作筒可提供多种材料供选择。
CHEMICAL MEDICAMENT INJECTION VALVE ASSEMBLY
INTRODUCTION
Chemical medicament injection valve assembly includes chemical valve and fixed chemical injection joint, which is a wellbore equipment for controlling chemical medicament into tubing. Fixed injection valve is attached to fixed nipple before running in wellbore. A control line is connected to chemical valve and wellhead. Chemical medicament is injected into the production string by the surface chemical injection pump through control line, and fixed chemical injection valve.
It may be unnecessary to connect control line, it can be injected into production string directly through annulus of tubing and casing.Chemical medicament injection valve assembly includes chemical valve and fixed chemical injection joint, which is a wellbore equipment for controlling chemical medicament into tubing. Fixed injection valve is attached to fixed nipple before running in wellbore. A control line is connected to chemical valve and wellhead. Chemical medicament is injected into the production string by the surface chemical injection pump through control line, and fixed chemical injection valve. It may be unnecessary to connect control line, it can be injected into production string directly through annulus of tubing and casing.
FEATURES
◎ Rupture tray adopts breakable glass or metal;
◎ Injection valve adopts standard NPT;
◎ Has check valve design for injection valve;
◎ The materials of injection valve which has stainless steel and NCONEL can be selected depending on requirement of well condition;
◎ The integral configuration of nipple is used, it is firm and durable;
◎ The connection thread of nipple and chemical injection valve is 1/2” NPT;
◎ Many kinds of materials can be selected for injection join.

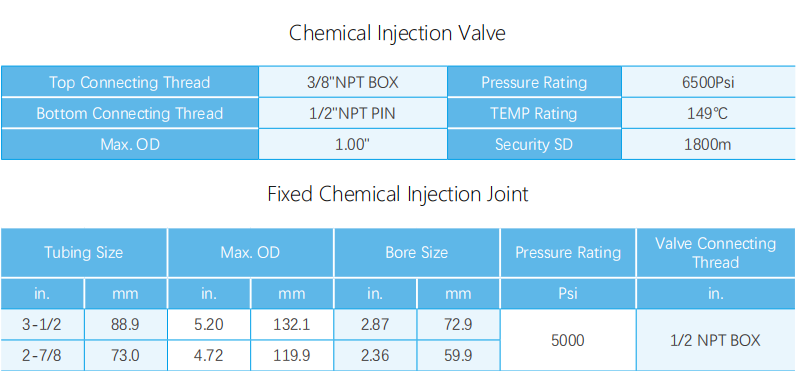

Note: Other specification products are available.
