Y接头主要应用于电潜泵完井管柱，其上部连接坐落短节，下部分别与坐落短节和 电潜泵相连。Y接头具有不低于N80钢级的抗拉和抗压强度，同时还具有抗腐蚀性能。

主要特性

◎ 较大的过流面积；

◎ 结构简单。

应用

◎ 直井，定向井及水平井；

◎ 单管分层开采。

Y-Block

INTRODUCTION

Y-Block is applied to Electric Submersible Pump completion string. The upper part of Y-Block is attached to the landing nipple, and the lower part of Y-Block connects to both landing nipple and the ESP. The tensile strength and compress strength of Y-Block is equal to or greater than that of N80 grade tubing, it also has corrosion resistance at the same time.

FEATURES

◎ large flow area;

◎ simple design

APPLICATIONS

◎ vertical, deviated or horizontal well;

◎ single- string selective completion.

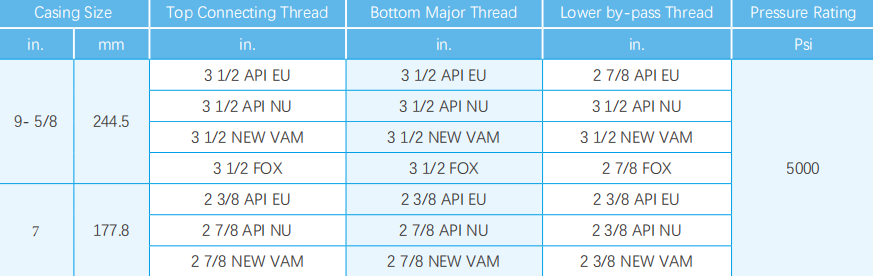

Note: Other specification products are available.
