CS-HPT液压坐封可回收封隔器是一款高性能封隔器，它结合了永远封隔器和可回收封隔器的优点，既能承受高温高压又能容易的回收。筒式卡瓦设计能均匀的分配载荷至套管上。密封支撑元件能可靠地密封高压，并随封隔器一 起回收。

主要特性

◎ 桶式卡瓦设计，结构坚固可靠；

◎ 大通径设计，便于其他内部工具的下入；

◎ 承载能力高，应用范围广；

◎ 适用与单趟完井；

◎ 应用于生产、测试或压裂井；

◎ 采用专用工具打捞、回收；

◎ 卡瓦位于胶筒下方，防止碎屑堆积。

CS-HPT HYDRAULIC-SET RETRIEVABLE PACKER

INTRODUCTION

      The CS-HPT hydraulic-set retrievable packer combines the pressure and Temperature ratings  and reliability of a permanent packer with the convenience of a retrievable packer. The barrel  slip uniformly distributes the packer to casing loads. The propped element package reliably seals  the high pressures and can be retrieved with the packer.

FEATURES

◎ Barrel slip;

◎ Big bore diameter design;

◎ High pressure withstanding capability;

◎ The single-trip completions, set by applying pressure on tubing;

◎ Applicable in production, testing and fracturing wells;

◎ Retrievable special retrieving tool;

◎ Slips located below element package for protection from debris.

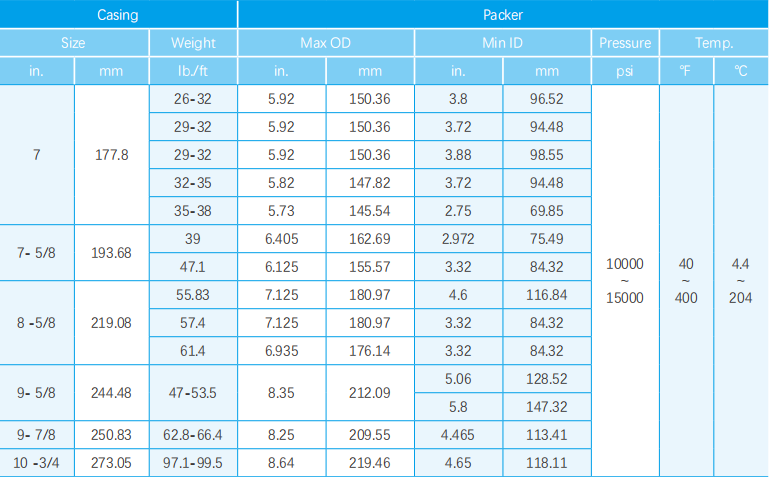

Note: Other specification products are available.
