示踪剂筛管是将示踪剂带预置到绕丝筛管或金属网布筛管中，用于监测油水井 产出情况，对样品进行分析，得出示踪剂产出曲线，然后进行拟合，反映油水井开 发情况，从而指导油井开采的设计和油田开发后期的调整。

设计特点

◎ 在绕丝筛管或金属网布筛管中预置踪剂带，用于监测油水井产出情况。

产品应用

◎ 适用于出水的油井，对生产层进行跟踪，获得油、气、水在各储层的出产情况。

TRACER SCREEN

The tracer screen is to preset the tracer belt into the wire-wrapped screen or metal mesh screen,  which is used to monitor the output of oil and water wells, analyze the samples to obtain the tracer output curve, and then perform fitting reflects the development of oil and water wells,  thereby guiding the design of oil well development and adjustments in the later stage of oil field development.

FEATURES

◎ The tracer belt is preset in the wire-wrapped screen or metal mesh screen to monitor the output of oil and water wells.

APPLICATIONS

◎ It is suitable for oil wells with water production to track the production layer and obtain the production of oil, gas and water in the reservoir.

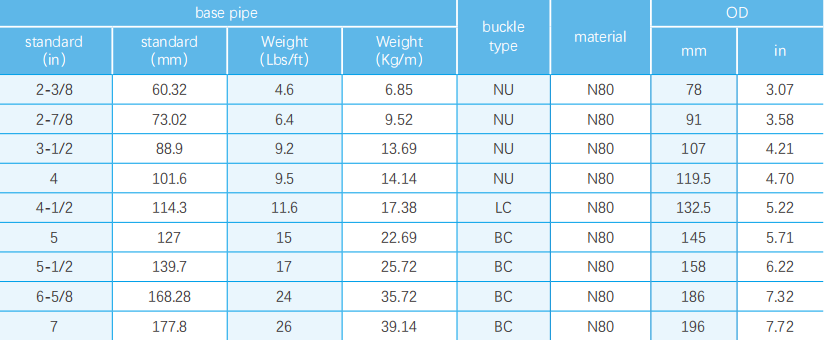

Notes: 1. The outer diameter is slightly different according to different matching screen types.   Here, the 90L wire-wrapped specification of the slip-on wire-wrapped screen is calculated; 2. The screen type, material, thread type, base pipe specification and filtration rating can be  customized according to customer requirements.
